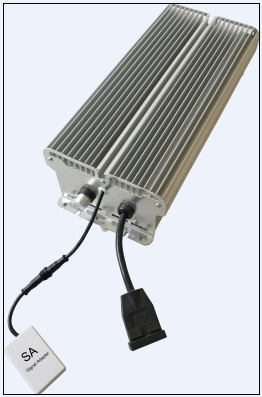

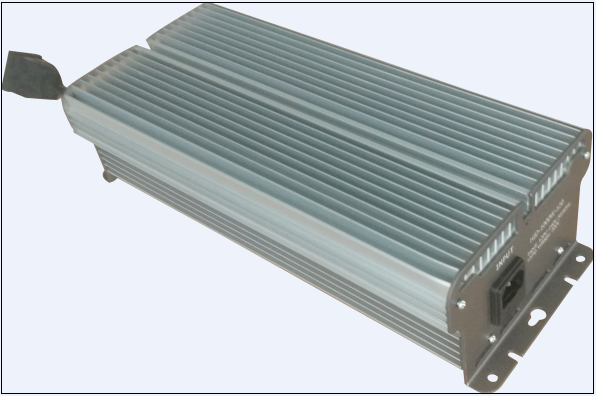

1000W Electronic ballast 120v/208v/240v for MH/HPS,Double ended/Single ended, Hydroponics/Green house, Support remote wireless controled system
1000W Electronic ballast 120v/208v/240v for MH/HPS,Double ended/Single ended, Hydroponics/Green house, Support remote wireless controled system

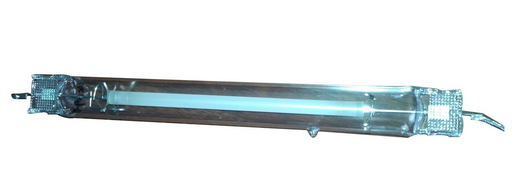

| E-ballast Model# | HID-1000W-120/208/240Vac | Lamps | HPS 1000W DE bulbs |
|---|---|---|---|
| Safe Voltage range (AC)* | 90Vac-265Vac | Ignition Switch-off Time | 20 min |
| Working Voltage (AC)** | 120V/208V/240Vac | Ignition Voltage | 2.2(min),6 kV (max) |
| Power factor | 0.99 | Input cricuit | 8.833@120V 4.401@240v |
| Input Power | 1082W@120V@ 1056@240V | Output Power | 1000W@120V/240V |
| Out frequency | Ultra high frequency | THD | < 7% |
| Efficiency | 91.3%@120V 94.2@240V | Led status | Optional |

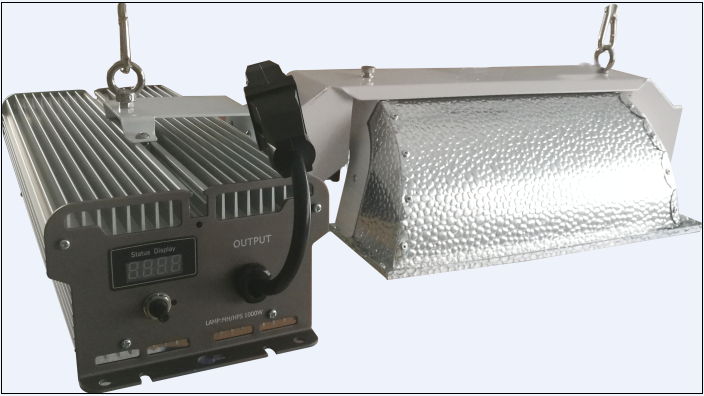

| Dimmable (Optional) | Knob + Remote controled | Fixture/Refelctor | HPS 1000Watt DE Fixtures |
| L*W*H | 362*157*98 | Net weight | 2.3 Kg |
| Inner-box Size | 480*240*160 | CTN Size | 500*270*350 |
| Qty/CTN | 2PCS | FOB Port | Qingdao.China |
| Event | Action | LED shown | Remarks |
|---|---|---|---|
| Normal Operating | Input voltage Set power |
Shown input voltage and set power alternately, each 4 seconds; | |
| Input voltage high | Turn off | HU Input voltage |
Input voltage>265Vac, LED show HU and current input voltage alternately; |
| Input voltagelow | Dimming Turn off |
LU; or-- Input voltage Set power |
Input voltage<85V → turn off → LED show LU; 85V<Input voltage<105V → educe output power → LED show input voltage and set power alternately; |
| Short circuit | Turn off | I----I | |
| Open circuit | Turn off | -I I- | |
| Over heated | Dimming | Temperature Set power |
Inner temperature>105℃ → Reduce output power to 80%; LED show inner ballast temperature and set power alternately; |
| Lamp off | Turn off | OFF | |
| Dimming | Dimming | Set power | Show current set power for 5 seconds ; |
