1000W Electronic ballast 277V/347V for MH/HPS,Double ended/Single ended, Hydroponics/Green house, Support remote wireless controled system
1000W Electronic ballast 277V/347V for MH/HPS,Double ended/Single ended, Hydroponics/Green house, Support remote wireless controled system
| E-ballast Model# | HID-1000W-277V/347Vac | Lamps | HPS 1000W DE blubs |
|---|---|---|---|
| Safe Voltage range (AC)* | 240Vac-400Vac | Ignition Switch-off Time | 20 min |
| Working Voltage (AC)** | 277V/347Vac | Ignition Voltage | 2.2(min),6 kV (max) |
| Power factor | 0.99 | Input cricuit | 3.61@277V 2.88@347V |
| Input Power | 1056W@277V@ 1050@347V | Output Power | 1000W@277V/347V |
| Out frequency | Ultra high frequency | THD | < 7% |
| Efficiency | 94.6%@120V 95@347V | Led status | Optional |

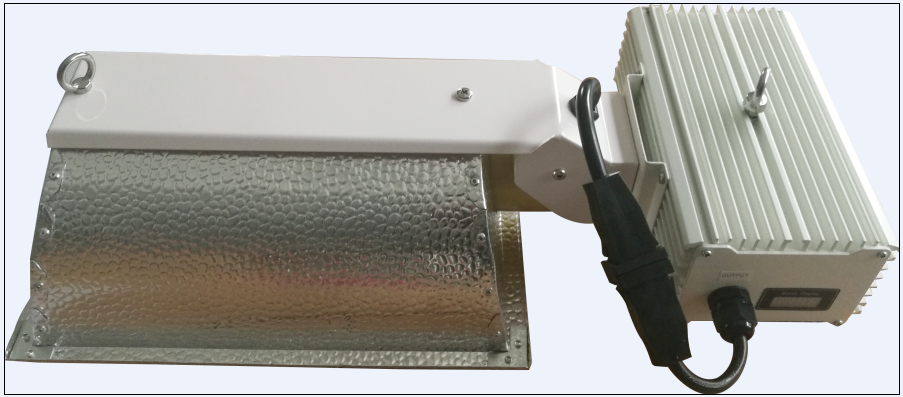

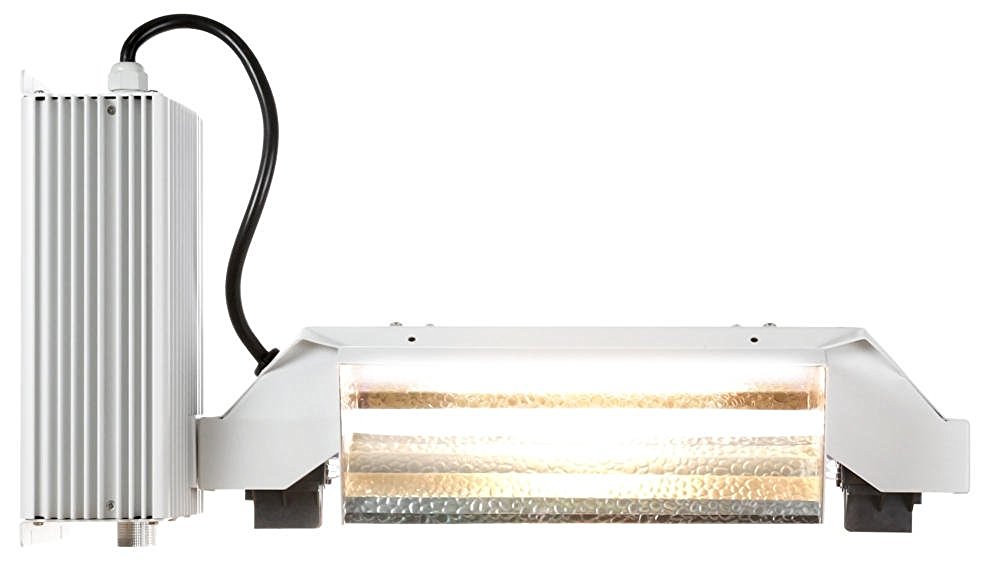

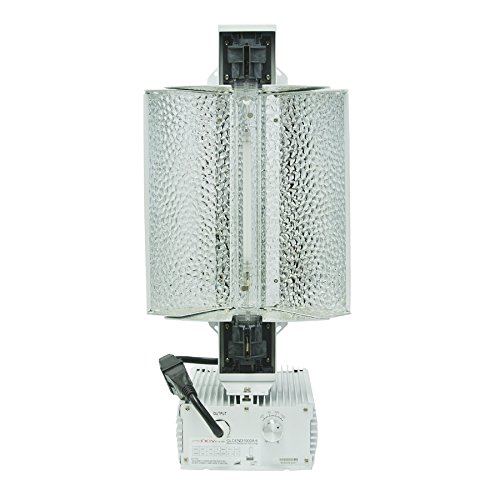

| Dimmable(Optional) | Knob + Remote controled | Fixture/Refelctor | HPS 1000Watt DE Fixtures |

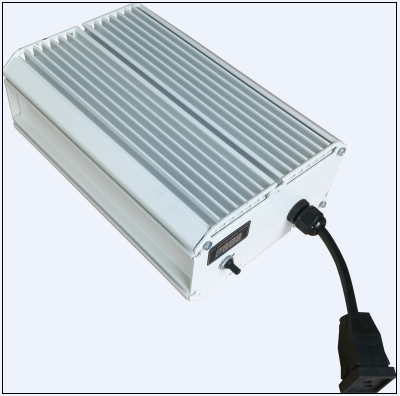

| E-Ballast L*W*H | 303*180*98 | Net weight | 2.4 Kg |
| Inner-box Size | 390*240*150 | CTN Size | 420*270*320 |
| Qty/CTN | 2PCS | FOB Port | Qingdao.China |
| Event | Action | LED shown | Remarks |
|---|---|---|---|
| Normal Operating | Input voltage Set power |
Shown input voltage and set power alternately, each 4 seconds; | |
| Input voltage high | Turn off | HU Input voltage |
Input voltage>265Vac, LED show HU and current input voltage alternately; |
| Input voltagelow | Dimming Turn off |
LU; or-- Input voltage Set power |
Input voltage<85V → turn off → LED show LU; 85V<Input voltage<105V → educe output power → LED show input voltage and set power alternately; |
| Short circuit | Turn off | I----I | |
| Open circuit | Turn off | -I I- | |
| Over heated | Dimming | Temperature Set power |
Inner temperature>105℃ → Reduce output power to 80%; LED show inner ballast temperature and set power alternately; |
| Lamp off | Turn off | OFF | |
| Dimming | Dimming | Set power | Show current set power for 5 seconds ; |
